| Wide application for stainless steel and nitrogen |
|
AXIS Q6045-S Mk II is a high-speed surveillance camera in a pressurized, marine-grade stainless steel casing.
The robust camera is designed for round-the-clock pan/tilt/zoom operation, providing HDTV 1080p and 32x optical zoom with autofocus for 360° coverage of wide areas and great detail when zooming in.
The highly durable, outdoor-ready camera is ideal for many applications that can take advantage of the benefits of stainless steel and pressurized nitrogen.
Outdoor applications include marine, mining, and oil and gas environments. Indoor applications include food, medical and clean room manufacturing facilities.
|
| |
| High durability |
With a stainless steel (SAE 316L/V4A) casing and a nylon clear dome cover, the camera has high resistance to the corrosive effect of sea water and cleaning chemicals.
The camera can operate in -30 °C to 50 °C (-22 °F to 122 °F) and its MIL-STD-810G 509.5, IP6K9K, IP66, IP67 and NEMA 4X approvals ensure protection against salt fog, high pressure and steam jet cleaning, dust, rain, snow and ice.

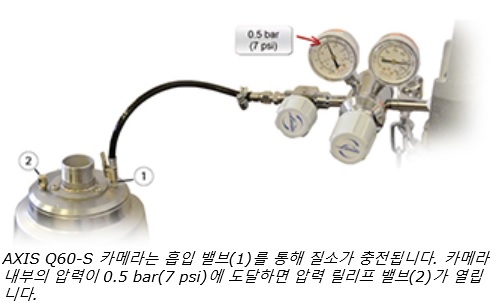

AXIS Q6045-S Mk II is also designed to be filled with nitrogen—a colorless, non-reactive and non-combustible gas that makes up 78% of Earth’s atmosphere. Nitrogen in a sealed environment provides benefits such as preventing internal condensation.
|
| |
| Intelligent video |
|
AXIS Q6045-S Mk II comes with built-in basic analytics such as highlight compensation, object removed, fence detector, object counter and enter/exit detection.
It also supports autotracking and Active Gatekeeper.
With Active Gatekeeper, the camera can automatically move to a preset position when motion is detected in a pre-defined area, and track the detected object.
The camera also has substantial capacity for third-party intelligent video applications that are based on the AXIS Camera Application Platform
|
| |
| Flexible installation and easy integration |
|
The supplied media converter switch allows AXIS Q6045-S Mk II to be connected in a daisy chain to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances.
The media converter switch also enables the cameras to connect to external alarm devices via two configurable input/output ports, and to 12 V power.
|
| |
| 카다로그 |
AXIS Q6045-S Mk II PTZ Dome Network Cameras
|
| |
| 사용자 매뉴얼 |
AXIS Q6045-S Mk II - User Manual
AXIS Q6045-S Mk II - Installation Guide
|
| |

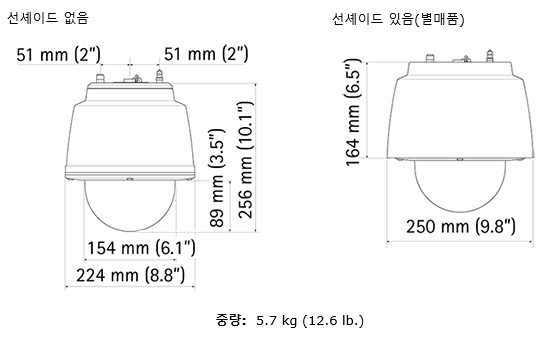

| 치수 |
|
| |
|
